Malaysian Journal of Analytical Sciences Vol 26 No 4 (2022): 718 - 733









DETERMINATION OF 3-MONOCHLOROPROPANE-1,2-DIOL (3-MCPD) ESTERS IN EDIBLE PLANT OILS BY INDIRECT ACIDIC TRANSESTERIFICATION METHODS AND THE BPX-5 CAPILLARY COLUMN



(Penentuan Ester 3-Monokloroprapana-1,2-diol (3-MCPD) dalam Minyak Tumbuhan Boleh Dimakan dengan Kaedah Transesterifikasi Berasid Tidak Langsung dan Turus Kapilari BPX-5)



May Yee Wong^{1, 2}, Huey Fang Teh³, Sook Mei Khor¹*



¹Department of Chemistry, Faculty of Science,

Universiti Malaya, 50603 Kuala Lumpur, Malaysia.

²Behn Meyer R&D Services Sdn. Bhd., 47600 Subang Jaya, Selangor, Malaysia.

³Sime Darby Plantation Technology Centre Sdn Bhd, 1st Floor, Block B, UPM-MTDC Technology Centre III,

Universiti Putra Malaysia, Lebuh Silikon, 43400 Serdang, Selangor Darul Ehsan, Malaysia.



*Corresponding author:  naomikhor@um.edu.my





Received: 19 Jan 2022; Accepted: 13 April 2022; Published:  25 August 2022





Abstract

3-monochloropropane-1,2-diol (3-MCPD) and its ester are categorized as food toxicants that formed during high-temperature processing of fat-based matrices. It has been classified as a possible human carcinogen (Group 2B) due to its potential to induce cancer in humans. This study investigated the level of 3-MCPD esters in palm oil and other edible plant oils available in the Malaysian market. The samples were analyzed using indirect methods involving acidic transesterification, then quantified by gas chromatography-mass spectrometry (GC-MS) equipped with BPX-5 capillary column using selected ion monitoring (SIM) mode. The method performance showed good recovery between 92.80% to 105.22% and good reproducibility with RSD of 4.18% to 5.63% for three different concentrations of spiked 3-MCPD. The limits of detection (LOD) and quantification (LOQ) were 0.11 mg kg^-1 and 0.14 mg kg^-1, respectively. The highest concentrations of 3-MCPD esters were detected in refined palm oil, ranging from 2.29 to 4.10 mg kg^-1, while 3-MCPD esters in other edible plant oils varied from <LOQ to 3.75 mg kg^-1. The validated results are presented to attract policymakers' attention and achieve the goal of ensuring consumer rights while monitoring food safety and quality.



Keywords:  3-monochloropropane-1,2-diol, gas chromatography-mass spectrometry, edible plant oils, food safety, food control



Abstrak

3-monokloroprapana-1,2-diol (3-MCPD) dan esternya dikategorikan sebagai bahan toksik makanan yang terbentuk semasa pemprosesan bersuhu tinggi matriks berasaskan lemak. Ia telah diklasifikasikan sebagai karsinogen manusia yang berkemungkinan (Kumpulan 2B) kerana potensinya untuk menyebabkan kanser pada manusia. Kajian ini dijalankan untuk menyiasat tahap ester 3-MCPD dalam minyak sawit dan minyak tumbuhan boleh dimakan lain yang terdapat di pasaran Malaysia. Sampel dianalisis menggunakan kaedah tidak langsung yang melibatkan transesterifikasi berasid, yang kemudiannya dikuantifikasi oleh kromatografi gas-spektrometri jisim (GC-MS) yang dilengkapi dengan turus kapilari BPX-5 menggunakan mod pemantauan ion (SIM) terpilih. Prestasi kaedah menunjukkan perolehan semula yang baik antara 92.80% hingga 105.22% dan juga kebolehulangan yang baik dengan RSD sebanyak 4.18% hingga 5.63% untuk tiga kepekatan berbeza 3-MCPD terpaku. Had pengesanan (LOD) dan kuantifikasi (LOQ) didapati masing-masing pada 0.11 mg kg^-1 dan 0.14 mg kg^-1. Kepekatan tertinggi ester 3-MCPD dikesan dalam minyak sawit ditapis, antara 2.29 hingga 4.10 mg kg^-1, manakala ester 3-MCPD dalam minyak tumbuhan boleh dimakan lain berbeza daripada <LOQ hingga 3.75 mg kg^-1. Keputusan yang disahkan dibentangkan dengan harapan dapat menarik perhatian penggubal dasar dan mencapai matlamat untuk memastikan hak pengguna sambil memantau keselamatan dan kualiti makanan.



Kata kunci:   3-monokloropropana-1,2-diol, kromatografi gas-spektrometri jisim, minyak tumbuhan boleh dimakan, keselamatan makanan, kawalan makanan

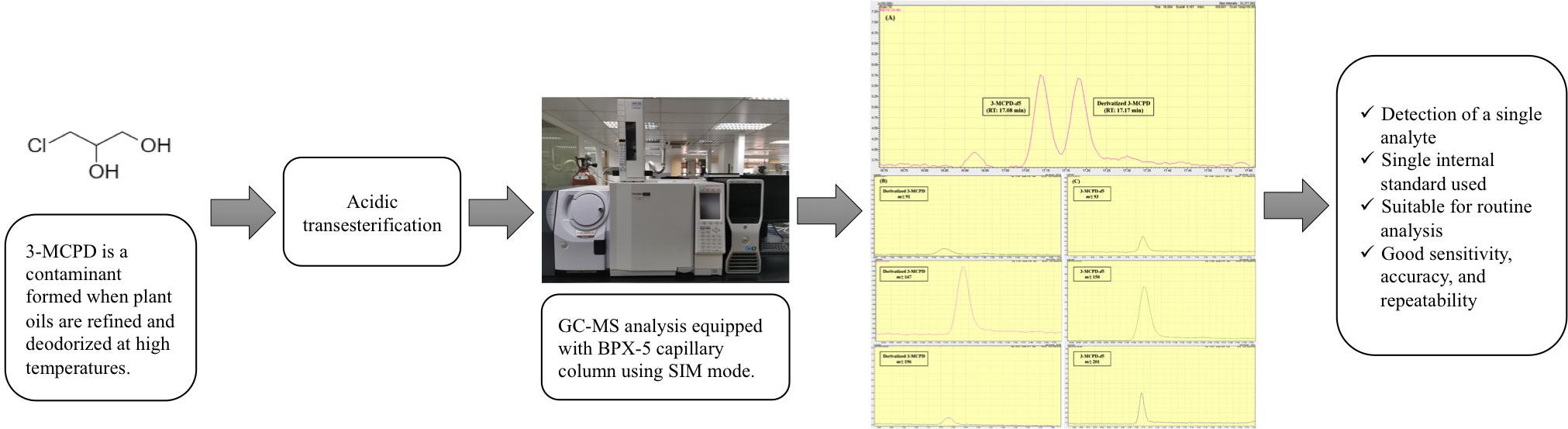

Graphical Abstract





References

1.      Zhou, Y., Zhao, W., Lai, Y., Zhang, B. and Zhang, D. (2020). Edible plant oil: Global status, health issues, and perspectives. Frontiers in Plant Science, 11: 1315.

2.      Costa, H., Gonçalves Albuquerque, T. and Oliveira, M. (2018). 3-MCPD occurrence in vegetable oils: Impact on human nutrition and future challenges. EC Nutrition, 13: 455-469.

3.      Stadler, R. H. (2015). Monochloropropane-1,2-diol esters (MCPDEs) and glycidyl esters (GEs): an update. Current Opinion in Food Science, 6:12-18.

4.      Ermacora, A. and Hrncirik, K. (2012). Evaluation of an improved indirect method for the analysis of 3-MCPD esters based on acid transesterification. Journal of Oil & Fat Industries, 89:211-217.

5.      Hrncirik, K., Zelinkova, Z. and Ermacora, A. (2011). Critical factors of indirect determination of 3-chloropropane-1,2-diol esters. European Journal of Lipid Science and Technology, 113: 361-367.

6.      Velísek, J., Davídek, J., Hajslová, J., Kubelka, V., Janícek, G. and Mánková, B. (1978). Chlorohydrins in protein hydrolysates. Z Lebensm Unters Forsch, 167(4): 241-244.

7.      Davídek, J., Vfiaek, J., Kubelka, V., Janîek, G. and `imicová, Z. (1980). Glycerol chlorohydrins and their esters as products of the hydrolysis of tripalmitin, tristearin and triolein with hydrochloric acid. Zeitschrift für Lebensmittel-Untersuchung und Forschung, 171:14-17.

8.      Doležal, M., Chaloupská, M., Divinová, V., Svejkovská, B. and Velišek, J. (2005). Occurrence of 3-chloropropane-1,2-diol and its esters in coffee. European Food Research and Technology, 221(3):221-225.

9.      Hamlet, C. and Sadd, P. A. (2004). Chloropropanols and their esters in cereal products. Czech Journal of Food Sciences, 22: 259-262.

10.   Zelinková, Z., Svejkovská, B., Velíšek, J. and Doležal, M. (2006). Fatty acid esters of 3-chloropropane-1,2-diol in edible oils. Food Additives & Contaminants, 23(12):1290-1298.

11.   Zelinková, Z., Doležal, M. and Velíšek, J. (2009). Occurrence of 3-chloropropane-1,2-diol fatty acid esters in infant and baby foods. European Food Research and Technology, 228(4):571-578.

12.   Zelinková, Z., Novotný, O., Schůrek, J., Velíšek, J., Hajšlová, J. and Doležal, M. (2008). Occurrence of 3-MCPD fatty acid esters in human breast milk. Food Additives & Contaminants: Part A, 25(6): 669-676.

13.   Abd. Razak, R. A., Kuntom, A., Siew, W. L., Ibrahim,  N. A., Ramli, M. R., Hussein, R. and Nesaretnam K. (2012). Detection and monitoring of 3-monochloropropane-1,2-diol (3-MCPD) esters in cooking oils. Food Control, 25(1): 355-360.

14.   Buhrke, T., Weißhaar, R. and Lampen, A. (2011). Absorption and metabolism of the food contaminant 3-chloro-1,2-propanediol (3-MCPD) and its fatty acid esters by human intestinal Caco-2 cells. Archives of Toxicology, 85(10):1201-1208.

15.   IARC (2013). Some chemicals present in industrial and consumer products, food and drinking-water. IARC Monograph Evaluation Carcinogenic Risks Human, 101:9-549.

16.   CONTAM (2016). Risks for human health related to the presence of 3- and 2-monochloropropanediol (MCPD), and their fatty acid esters, and glycidyl fatty acid esters in food. EFSA Journal, 14(5):e04426.

17.   Kuhlmann, J. (2011). Determination of bound 2,3-epoxy-1-propanol (glycidol) and bound monochloropropanediol (MCPD) in refined oils. European Journal of Lipid Science and Technology, 113(3): 335-344.

18.   Commission E (2001). Opinion of the Scientific Committee on Food on 3-Monochloro-propane-1, 2-diol (3-MCPD). European Commission Health & Consumer Protection Directorate-General, 2001: pp 1-5.

19.   Joint FAOWHOECoFAM, Safety evaluation of certain food additives and contaminants / prepared by the fifty-seventh meeting of the Joint FAO/WHO Expert Committee on Food Additives (JECFA). 2002, World Health Organization: Geneva.

20.   Arris, F. A., Thai, V. T. S., Manan, W. N. and Sajab, M. S. (2020). A revisit to the formation and mitigation of 3-chloropropane-1,2-diol in palm oil production. Foods, 9(12):1769.

21.   May, C. Y. and Nesaretnam, K. (2014). Research advancements in palm oil nutrition. European Journal of Lipid Science and Technology, 116(10): 1301-1315.

22.   Garballo-Rubio, A., Soto-Chinchilla, J., Moreno, A. and Zafra-Gómez, A. (2017). A novel method for the determination of glycidyl and 3-monochloropropanediol esters in fish oil by gas chromatography tandem mass spectrometry. Talanta, 165:267-273.

23.   Haines, T. D., Adlaf, K. J., Pierceall, R. M., Lee, I., Venkitasubramanian, P. and Collison, M. W. (2011). Direct determination of MCPD fatty acid esters and glycidyl fatty acid esters in vegetable oils by LC–TOFMS. Journal of the American Oil Chemists' Society, 88(1):1-14.

24.   Jędrkiewicz, R., Kupska, M., Głowacz, A., Gromadzka, J. and Namieśnik, J. (2016). 3-MCPD: A worldwide problem of food chemistry. Critical Reviews in Food Science and Nutrition, 56(14): 2268-2277.

25.   Divinova, V., Svejkovska, B., Doležal, M. and Velisek, J. (2004). Determination of free and bound 3-chloropropane-1,2-diol by gas chromatography with mass spectrometric detection using deuterated 3-chloropropane-1,2-diol as internal standard. Czech Journal Food Sciences, 22: 182-189.

26.   Samaras, V. G., Giri, A., Zelinkova, Z., Karasek, L., Buttinger, G. and Wenzl, T. (2016). Analytical method for the trace determination of esterified 3- and 2-monochloropropanediol and glycidyl fatty acid esters in various food matrices. Journal of Chromatography A, 1466: 136-147.

27.   Wöhrlin, F., Fry, H. and Preiss-Weigert, A. (2011). Collaborative study for the determination of 3-MCPD fatty acid esters in edible fats and oils. second collaborative study—part I. Method validation and proficiency test. Federal Institute for Risk Assessment: pp. 83-99.

28.   Veerasamy, R., Sivadasan, S., Karupiah, S. and Rajak, H. (2010). Validation of analytical methods - Strategies & importance. International Journal of Pharmacy and Pharmaceutical Sciences, 2: 18-22.

29.   Bertil, M. and Örnemark. U. (2014). The fitness for purpose of analytical methods: A laboratory guide to method validation and related topics. A laboratory guide to method validation and related topics, LGC, Teddington, Middlesex, UK.

30.   Cassiday, L. (2017). Red palm oil. Inform, 28(2): 7.

31.   Hung, W-C., Peng, G-J., Tsai, W-J., Chang, M-H., Liao, C-D., Tseng, S-H., Kao, Y-M., Wang, D-Y. and Cheng, H-F. (2017). Identification of 3-MCPD esters to verify the adulteration of extra virgin olive oil. Food Additives & Contaminants: Part B, 10(3): 233-239.

32.   Hamlet, C., Asuncion, L., Velisek, J., Doležal, M., Zelinkova, Z. and Crews, C. (2011). Formation and occurrence  of esters of 3‐chloropropane‐1,2‐diol (3‐CPD)  in  foods:   What  we  know  and  what  we assume. European Journal of Lipid Science and Technology, 113: 279-303.

33.   Abd. Razak, R. A., Ahmad Tarmizi, A. H., Abdul Hammid, A. N., Kuntom, A., Ismail, I. S. and Sanny, M. (2019). Verification and evaluation of monochloropropanediol (MCPD) esters and glycidyl esters in palm oil products of different regions in Malaysia. Food Additives & Contaminants: Part A, 36(11):1626-1636.

34.   Arisseto, A., Marcolino, P. and Vicente, E. (2014). Determination of 3-monochloropropane-1,2-diol fatty acid esters in Brazilian vegetable oils and fats by an in-house validated method. Food Additives & Contaminants. Part A, Chemistry, Analysis, Control, Exposure & Risk Assessment, 31:1-8.
