Malaysian Journal of Analytical Sciences, Vol 26 No 6 (2022): 1227 - 1239



CARBON DOTS/CHITOSAN MODIFIED SCREEN-PRINTED CARBON ELECTRODES FOR THE DETECTION OF BISPHENOL A



(Elektrod Karbon Bercetak Skrin Terubah Suai Karbon Titik/Kitosan

untuk Pengesanan Bisfenol A)



Nor Faezah Mohd Daud1, Jaafar Abdullah1,2*, Nor Azah Yusof1,2, Putri Nur Syafieqah Zainal1



1Department of Chemistry,

Faculty of Science,

Universiti Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia

2Institute of Nanoscience and Nanotechnology,

University Putra Malaysia, 43400 Serdang, Selangor, Malaysia



*Corresponding author: jafar@upm.edu.my





Received: 10 February 2022; Accepted: 16 June 2022; Published:  27 December 2022



Abstract

Bisphenol A (BPA) is an organic compound in daily plastic products. The compound is primarily transferred from water bottles, food cans liners, and dental fillings into foods and beverages. The BPA is considered an endocrine-disrupting compound related to broad health concerns, such as reproduction problems and the development of various cancers. Consequently, developing a reliable analytical approach to determine BPA levels is urgent. The current study developed an electrochemical sensor from modified screen-printed carbon electrodes (SPCE) with carbon dots-chitosan (CDs-CS) to detect BPA. The CDs-modified SPCE provided a good electrocatalytic application with extraordinary electronic properties and significantly enhanced electrical conductivity. The modified SPCE/CDs-CS sensor was prepared through the drop casting technique. Subsequently, its BPA detection abilities were assessed via differential pulse voltammetry (DPV). In investigating the optimum parameters to elevate the performance of the developed sensors, 1% m/v CS concentration and 1:1 (v/v) CDs to CS ratio were recorded. The obtained CDs-CS/SPCE sensor demonstrated great electrocatalytic features for detecting BPA within the 0.4 and 10 µM concentration range with a sensitivity of 0.46 µA/µM (R˛ = 0.9911) and 0.37 µM limit of detection (LOD).



Keywords: Bisphenol A, carbon dots, chitosan, electrochemical sensor, environmental



Abstrak

Bisfenol A (BPA) adalah sebatian organik yang terdapat dalam produk plastik yang kita gunakan setiap hari. Sebilangan besarnya dipindahkan ke dalam makanan dan minuman termasuk botol air, lapisan tin makanan, dan tampalan gigi. BPA dianggap sebagai sebatian yang mengganggu endokrin yang berkaitan dengan pelbagai jenis masalah kesihatan seperti perkembangan barah dan masalah pembiakan. Oleh itu, pembangunan pendekatan analisis yang boleh dipercayai untuk mengesan BPA adalah isu mendesak. Dalam kajian ini, sensor elektrokimia berasaskan modifikasi elektrod karbon bercetak skrin (SPCE) dengan karbon titik-kitosan (CD-CS) telah diterokai untuk mengesan bisfenol A (BPA). SPCE yang diubahsuai dengan CD memberikan aplikasi elektro-pemangkin yang baik mempunyai sifat elektronik yang luar biasa dan peningkatan besar dalam kekonduksian elektrik. SPCE yang diubahsuai dengan CDs-CS disediakan dengan menggunakan teknik penyalutan titis. Pengesanan BPA pada sensor SPCE / CDs-CS dikaji dengan menggunakan voltammetri denyutan pembezaan (DPV). Parameter optimum pembangunan sensor seperti kepekatan CS 1% (m/v) dan nisbah CD-CS 1/1 (v/v) dikaji untuk meningkatkan prestasi sensor yang dibangunkan. Hasil kajian menunjukkan bahawa SPCE yang dimodifikasi dengan komposit CD-CS mempunyai ciri elektrokatalitik yang hebat untuk mengesan BPA dalam julat kepekatan dari 0.4 µM hingga 10 µM dengan kepekaan 0.46 µA/µM (R˛ = 0.9911) dan had pengesanan (LOD) 0.37 µM.



Kata kunci: bisfenol A, karbon titik, kitosan, sensor elektrokimia, alam sekitar

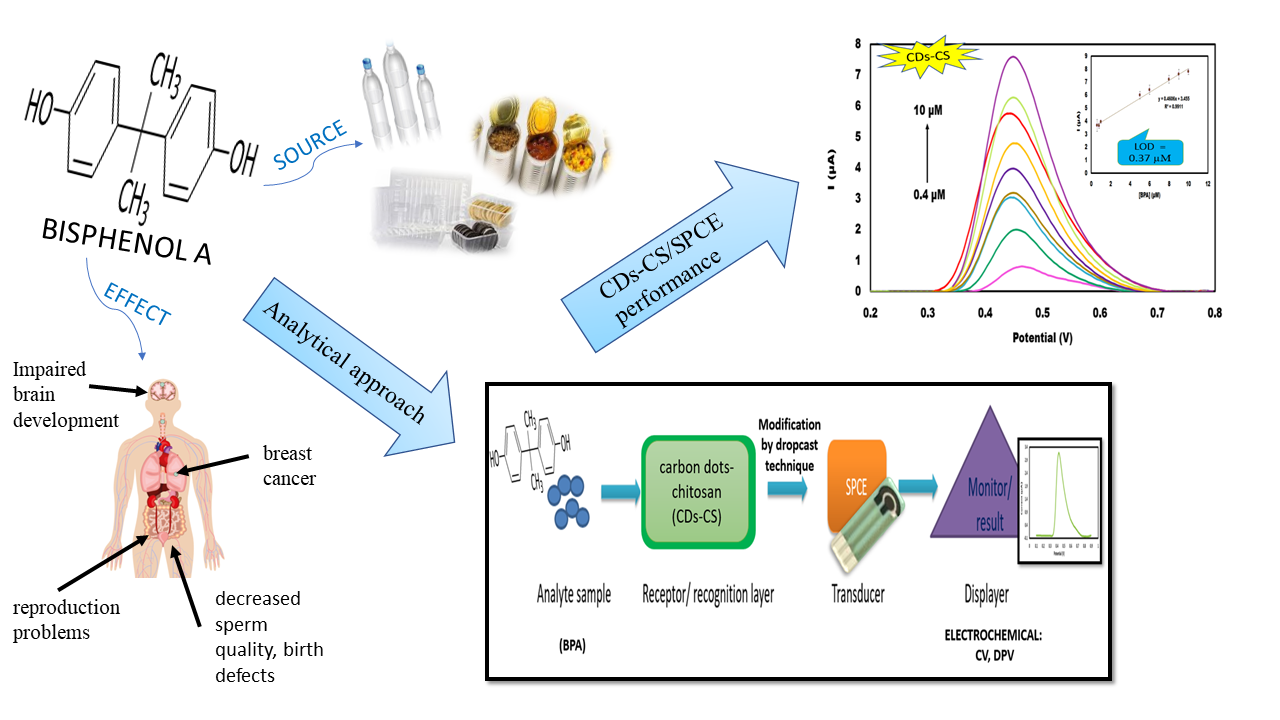

Graphical Abstract
