Journal of Analytical Sciences, Vol 26 No 6 (2022): 1179 - 1190
ENZYME-BASED
ELECTROCHEMICAL BIOSENSOR ON IMMOBILIZATION OF TYROSINASE ONTO CARBOXYL
FUNCTIONALIZED CARBON NANOTUBE FOR
DETECTION
OF TYRAMINE
(Biosensor
Elektrokimia Berasaskan-Enzim
Diimobilasi Enzim Tirosinase Ke Karboksil
Tiupnano Karbon Untuk Pengesanan Tiramin)
Nurul
Hana Masód and Syaza Azhari*
Industrial
Chemical Technology,
Faculty
of Science and Technology,
Universiti Sains
Islam Malaysia, Negeri Sembilan
Nilai 71800, Malaysia
*Corresponding author: syaza@usim.edu.my
Received: 12 February 2022; Accepted:
27 March 2022; Published: 27 December
2022
Abstract
Tyramine (TYR) in foods have been regarded as a quality indicator of
food freshness for assessing microbial action, which potentially affects human
health. Enzyme-based electrochemical biosensor technology represents an
excessively massive field that significantly impacts food quality control with
incredible potential and rapid tools. Thus, this study aimed to immobilize
tyrosinase (tyro) over single-wall carbon nanotubes (SWCNTs) onto the
screen-printed carbon electrode (SPCE) in the detection of TYR. The
characteristics and electrochemical behaviour of the modified SPCEs were
investigated by Fourier transformed infrared spectroscopy (FTIR), cyclic
voltammetry (CV) and differential pulse voltammetry (DPV). Under optimum
experimental conditions, Tyro-SWCNT-COOH/SPCE biosensor exhibit good
performance at scan rate 50 mVs-1 (range of 10 to 500 mVs-1),
pH 8.0 (range of 7.0 – 10.0), 8 µL enzyme tyrosinase (range of 2 to 10 µL), and 0.5 mg/mL SWCNTs (range
of 0.2 - 3.0 mg/ml). The modified SPCEs was successfully applied for tyramine
(TYR) determination with a detection limit (LOD) of 0.02 mM.
Keywords: tyrosinase, tyramine,
screen-printed electrode, single-walled carbon nanotube
Abstrak
Tiramin (TYR) dalam makanan telah
dianggap sebagai penunjuk kualiti kesegaran makanan untuk menilai tindakan
mikrob yang berpotensi menjejaskan kesihatan manusia. Teknologi biosensor
elektrokimia berasaskan enzim mewakili bidang yang luas dimana mampu memberi
kesan ketara terhadap kawalan kualiti makanan dengan potensi dan alat pantas
yang luar biasa. Oleh itu, matlamat kajian ini adalah untuk mengalihkan
tirosinase (tyro) ke atas tiubnano karbon berdinding tunggal (SWCNT) ke
elektrod karbon bercetak skrin (SPCE) dalam pengesanan tiramin (TYR). Ciri-ciri
dan tingkah laku elektrokimia SPCE yang diubah suai telah disiasat oleh
spektroskopi inframerah (FTIR), voltammetri kitaran (CV) dan voltammetri nadi
pembezaan (DPV). Di bawah keadaan percubaan optimum, biosensor
Tyro-SWCNT-COOH/SPCE mempamerkan prestasi yang baik pada kadar imbasan 50 mVs-1
(julat 10 hingga 500 mVs-1), pH 8.0 (julat 7.0 – 10.0), 8 µl enzim tirosinase
(julat daripada 2 hingga 10 µl), dan 0.5 mg/ml SWCNTs (julat 0.2 – 3.0 mg/ml).
SPCE yang diubah suai telah berjaya digunakan untuk penentuan tiramine (TYR)
dengan had pengesanan (LOD) sebanyak 0.02 mM.
Kata kunci: tirosinase, tiramin, elektrod bercetak
skrin, tiub nano karbon berdinding tunggal

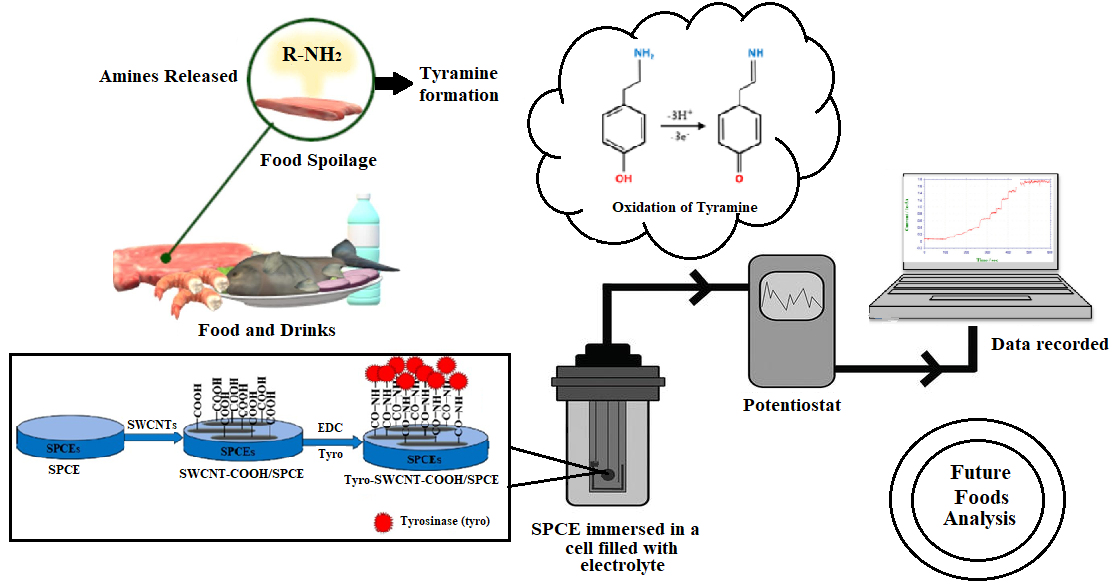

Graphical Abstract
